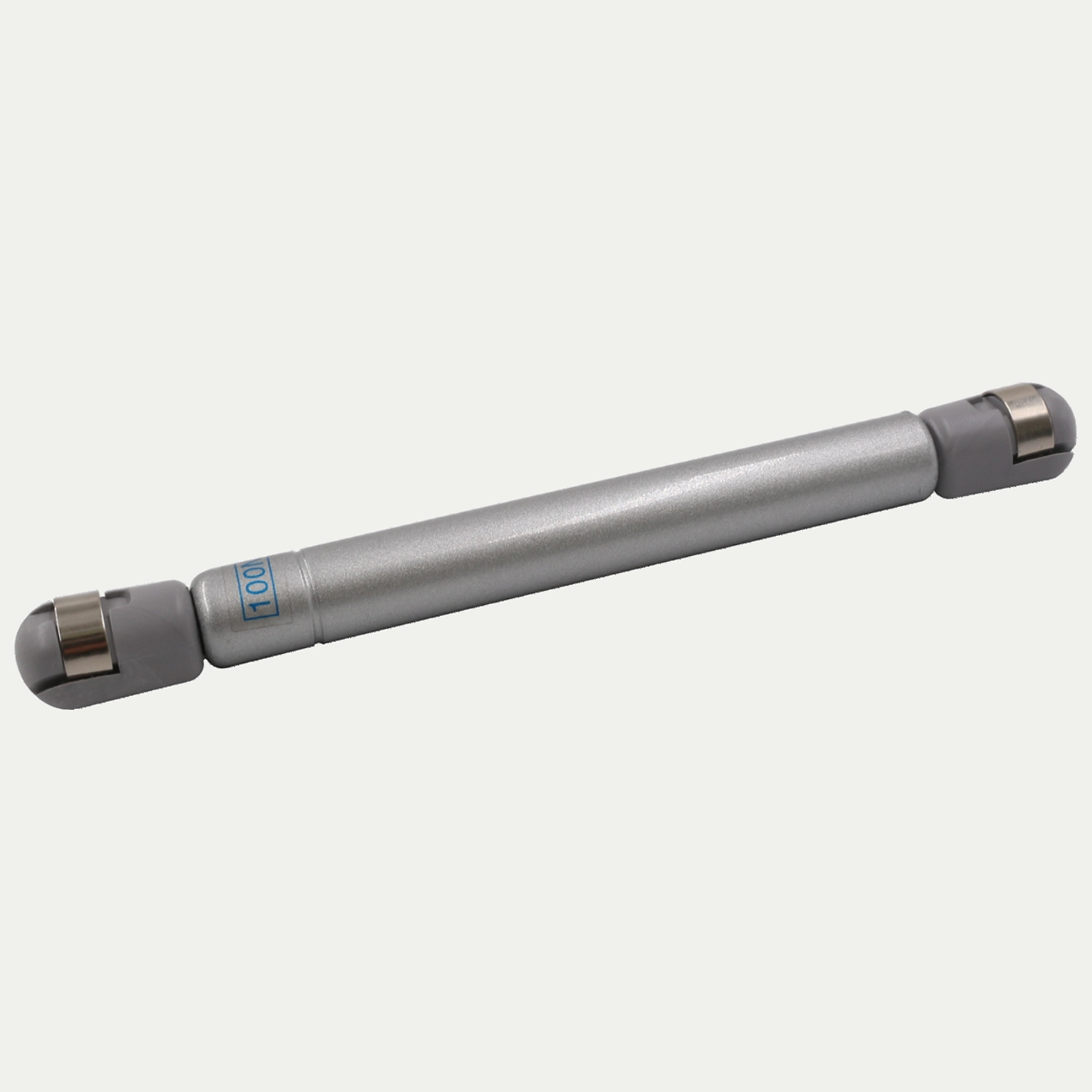

Flip-down door gas spring
Model: 701
- Material
- Plastic, Steel, Copper
- Pole finish
- Hard chrome plating
- Pipe finish
- Painting
- Tube Diameter
- Φ15 mm
- Rod Diameter
- Φ6 mm
- Hole Spacing
- 245 mm
- Length
- 268 mm
- Stroke
- 90 mm
- Force
- 40N-150N
- Application
- Flip-down wooden doors; Aluminum frame doors
Product Description
Flip-down door gas spring for wooden and aluminum frame doors. It is made of plastic, steel and copper, with a hard chrome plated pole and painted pipe. The gas spring uses a Φ15 mm tube and Φ6 mm rod, with force options from 40N to 150N. Please refer to the specifications for the exact parameters of this model.
Product Dimensions
Product standard accessories
Specifications
| Tube Diameter | Rod Diameter | Length | Hole Distance | Stroke | Force |
|---|---|---|---|---|---|
| Φ15 mm | Φ6 mm | 268 mm | 245 mm | 90 mm | 40N-150N |
